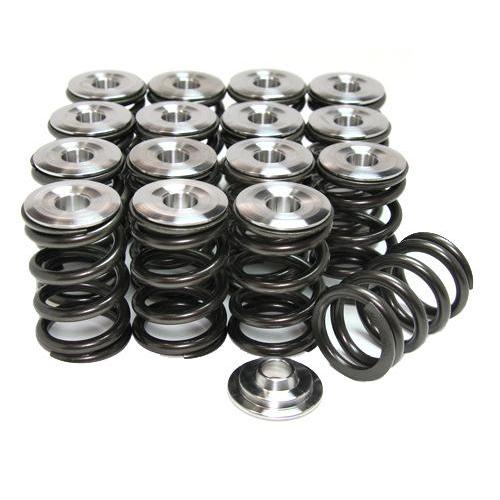

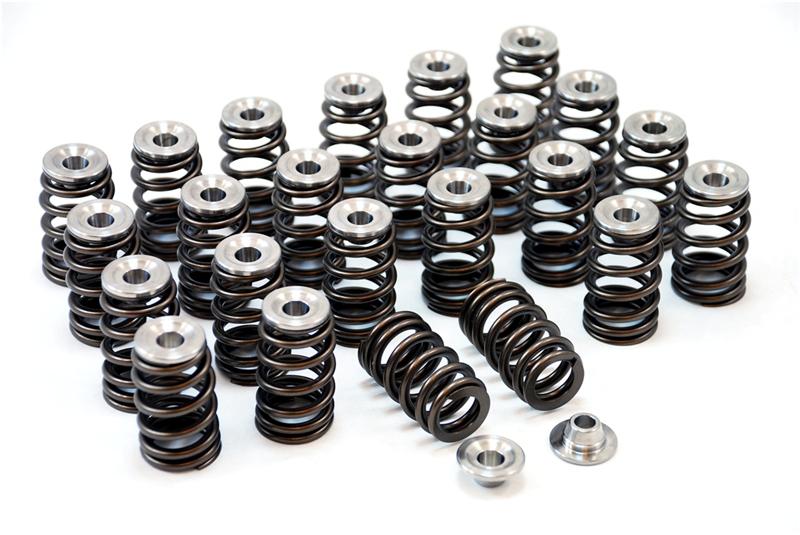

GSC P-D 2JZ Beehive Valve Springs w/ Titanium Retainer Valvetrain Kit (Use factory spring seats) GSC Power Division GSC5044
GSC P-D 2JZ Beehive Valve Springs w/ Titanium Retainer Valvetrain Kit (Use factory spring seats) GSC Power Division GSC5044
Click to zoom in

GSC P-D 2JZ Beehive Valve Springs w/ Titanium Retainer Valvetrain Kit (Use factory spring seats)

GSC5044
GSC5044
Valve Springs, Retainers
6 Units In Stock - Ships Next Business Day
$ 703.02 $ 597.57
$ 597.57

SKU: 5044 | UPC: GSC5044

GSC P-D 2JZ Beehive Valve Springs w/ Titanium Retainer Valvetrain Kit 1993-1998 Toyota Supra Twin Turbo (Use factory spring seats)

Equip your 2JZ-GTE engine with GSC Power-Division beehive valve springs and titanium retainers for dependable high-RPM operation. This valvetrain kit fits 1993-1998 Toyota Supra Twin Turbo models and supports revs over 10,000 RPM with precise control. Reduce valvetrain mass while maintaining strong seat pressures for boosted applications up to 1000+ wheel horsepower.

Key Features

  • Beehive Dual Spring Design: Progressive rates with intake seat pressure of 79.5 lbs at 1.900 inches and open pressure of 162 lbs at 1.400 inches, exhaust matched for balanced performance
  • Titanium Retainers: Cut valvetrain weight by over 50 percent compared to steel, improving response and durability under extreme loads
  • High RPM Capability: Coil bind height at 1.130 inches allows safe operation to 10,200 RPM without float in high-boost setups
  • Precision Engineering: Springs made from premium high-tensile steel for consistent harmonics and fatigue resistance in racing environments
  • Complete Kit: Includes 24 beehive springs and 24 titanium retainers for full valvetrain upgrade

Product Notes

  • Use factory spring seats for direct compatibility and simplified installation
  • Designed for stock or aftermarket camshafts with verified clearance
  • Securely packaged to prevent damage during transit

Installation Notes

  • Professional installation recommended.
  • Retains factory spring seats, no machining required on cylinder head
  • Compatible with OEM locks and seals, check cam lobe specs for optimal setup

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra Twin Turbo

Why Choose GSC Power-Division?

  • Proven in thousands of high-horsepower 2JZ builds worldwide
  • Dyno-tested components for real-world reliability
  • Made in USA with tight tolerances for consistent performance

Frequently Asked Questions

  • Q: Will this kit fit my 1993-1998 Toyota Supra Twin Turbo?
    A: Yes, GSC5044 is direct fit for all 2JZ-GTE engines in 1993-1998 Supra Twin Turbo models using factory spring seats
  • Q: What materials are used in the springs and retainers?
    A: Springs use high-tensile chrome-silicon steel, retainers are aerospace-grade titanium for strength and low weight
  • Q: What is the warranty and install process?
    A: Lifetime warranty on springs against failure, professional install advised with spring compressor tool for head removal

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Protective foam-lined box measuring 10 x 8 x 6 inches
  • Weight: 4.0 lbs
