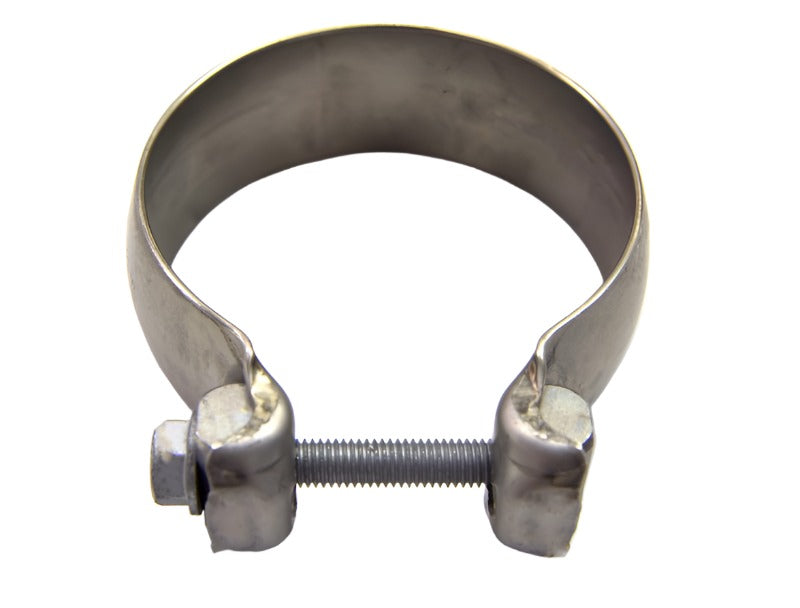

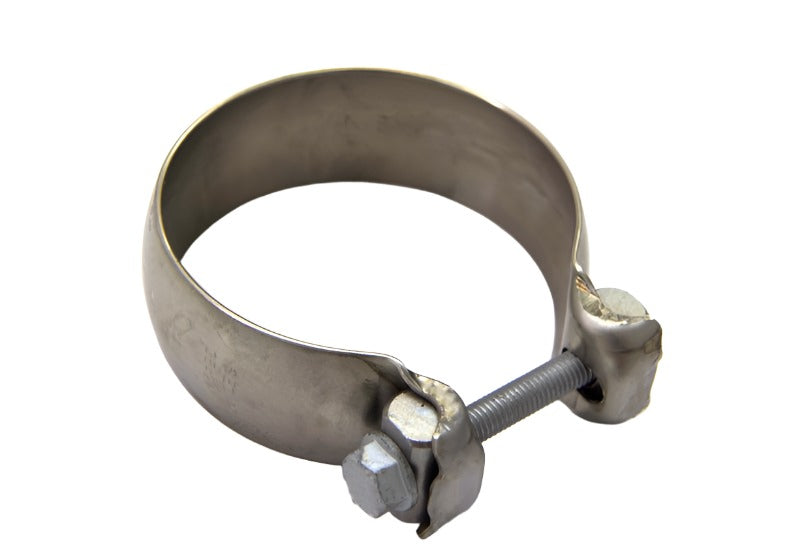

Kooks JI-K61003 3 in. Swivel Seal Clamp for Ball and Socket Connections Stainless Steel

Swivel Seal Clamp That Locks a 3 Inch Ball and Socket Exhaust Connection Securely

The JI-K61003 is a 3 inch swivel seal clamp designed specifically for Kooks ball and socket exhaust connections, providing the correct retention hardware to hold the ball and socket joint together while maintaining the joint's ability to articulate. Ball and socket connections cannot function properly without the correct clamp, and an improperly clamped joint will either allow the connection to separate or will bind the articulation that makes the ball and socket design valuable in the first place. This clamp is engineered to apply the correct sealing pressure to the socket against the ball while allowing the rotational freedom the joint requires.

T304 stainless steel construction makes the JI-K61003 fully resistant to the corrosive and thermal demands of a performance exhaust environment. This clamp is the companion hardware to the Kooks 7106S ball and socket connection, and together they form a complete, properly sealed articulating joint that will outlast cheap alternatives by a wide margin. For any builder using Kooks ball and socket technology, whether during an initial installation or replacing worn or damaged clamp hardware, this clamp is the correct part to specify.

Key Features

• Designed specifically for 3 inch Kooks ball and socket exhaust connections
• Swivel seal design applies correct clamping pressure while allowing joint articulation
• T304 stainless steel construction for durability and corrosion resistance
• Designed to pair with the Kooks 7106S ball and socket connection
• Secure installation prevents joint separation during operation
• Replaces worn or damaged ball and socket clamp hardware

What's Included

• 1 x this clamp 3 inch stainless swivel seal clamp for ball and socket exhaust connections

Specifications

Frequently Asked Questions

What is this clamp used for?
This clamp is the swivel seal clamp that retains the ball end inside the socket end of a 3 inch Kooks ball and socket exhaust connection, holding the joint together while allowing articulation.

Can I use a standard band clamp instead of this clamp?
No. A standard band clamp is not designed for a ball and socket joint and will either prevent the joint from articulating or will not provide adequate retention. This clamp is specifically designed for the ball and socket geometry to apply the right clamping action.

What ball and socket connection does this clamp work with?
This clamp is designed for the Kooks 7106S 3 inch ball and socket connection. It may be compatible with other brands' 3 inch ball and socket hardware, but this is not guaranteed. Verify compatibility before ordering.

Is this clamp sold as a single clamp?
Yes. One this clamp is used per ball and socket joint location. For multiple ball and socket connections in an exhaust system, order one per joint.

What material is this clamp made from?
T304 stainless steel, providing corrosion resistance and high temperature durability appropriate for performance exhaust applications.

How is this clamp installed?
This clamp slides over the assembled ball and socket joint and is tightened to the specified torque to apply the correct sealing load against the joint. Follow the Kooks exhaust installation instructions for the correct torque specification.

Will this clamp need periodic re tightening?
When used with Stage 8 locking hardware from the BK114 kit, the clamp hardware is mechanically prevented from loosening. Without locking hardware, periodic inspection and re tightening during regular maintenance is advisable.

Can this clamp be reused?
Yes, as long as the clamp body and threads are not damaged during removal. Inspect the clamp before reuse and replace if there is any thread damage or deformation.

Does this clamp seal the exhaust joint against leaks?
Yes. The swivel seal clamp applies clamping force that compresses the ball end against the socket, creating a sealed joint that does not leak exhaust gases during normal operation.

Is this clamp the clamp included in Kooks exhaust system kits?
Kooks includes the appropriate clamp hardware in their complete exhaust system kits. This clamp is available separately for replacement purposes or for custom builds that require additional ball and socket joints.

Installation Instructions

1. Ensure both the ball and socket halves of the Kooks 7106S connection are fully welded to their respective exhaust pipe sections before installing the clamp.
2. Seat the ball end fully into the socket end of the connection.
3. Slide this clamp swivel seal clamp over the assembled joint, positioning it at the socket flange.
4. Thread the clamp fasteners by hand before applying torque.
5. Torque this clamp to the specification in the Kooks exhaust installation instructions.
6. Verify the joint articulates freely and is not over clamped to the point of binding.
7. Check for exhaust leaks at the joint after the first startup and heat cycle.
