A Clamp-On V8 Dakota System With No Flange Gasket to Chase

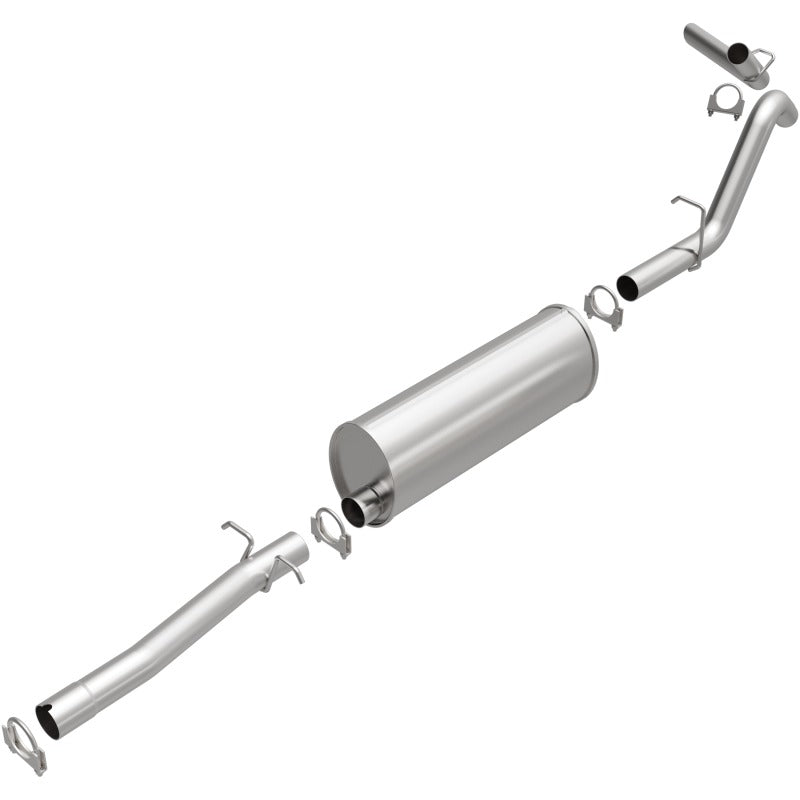

BRExhaust 106-0595 is the direct-fit exhaust for the 2000 to 2003 Dodge Dakota with either the 4.7L or the 5.9L V8. The distinguishing detail on this kit is the inlet: it is a clamp-on connection rather than a bolted flange, so no gasket or spring bolt kit ships with it, and four 2.5 in U-bolt clamps do the sealing.
Key Features
- Single 21.5 in standard-replacement aluminized muffler measuring 7 in high by 9 in wide.
- 2.5 in main piping diameter, mandrel bent through the chassis routing.
- Clamp-on inlet type, which means this kit ships with no gasket or seal and no spring bolt kit.
- Four 2.5 in U-bolt clamps supplied to make every joint.
- OEM-location exit with all emissions hardware left intact.
- Multi-piece design that routes around the axle, crossmembers and brackets with no cutting or welding.
- The BRExhaust 106-0595 carton contains all pipes, the muffler, the hardware and instructions.
Fitment
| Vehicle | Engine and years |
|---|---|
| Dodge Dakota | 2000-2003, 4.7L |
| Dodge Dakota | 2000-2003, 5.9L |
The 3.9L Dakota is a different part number in the same family, so the engine must be confirmed before ordering.
Cab and bed restrictions have not been published for this kit.
Specifications
| Detail | Value |
|---|---|
| Brand | BRExhaust |
| MPN | 106-0595 |
| Series | Direct-Fit Exhaust |
| Muffler quantity | 1 |
| Muffler body | 21.5 in L x 7 in H x 9 in W |
| Muffler and pipe material | Aluminized steel |
| Muffler finish | Aluminized |
| Overall finish | Satin |
| Main piping diameter | 2.5 in |
| Inlet type | Clamp on |
| Clamping type | U-bolt |
| Hangers included | No |
| Mounting bracket | No |
| Spring bolt kit | No |
| Gasket or seal | No |
| Hardware included | Yes |
| Catalytic converter included | No |
| Grade | Regular |
| Warranty | 2-year unlimited-mileage construction warranty |
What's Included
- One BRExhaust 106-0595 direct-fit exhaust kit with all pipes and the 21.5 in muffler
- Four 2.5 in U-bolt clamps
- Installation instructions
About BRExhaust
BRExhaust's direct-fit kits are packaged around the connection style the vehicle actually uses, and this Dakota kit is a clamp-on design rather than a flanged one. That removes the gasket as a wear item on 106-0595 but puts more weight on getting the slip joints clean and fully engaged before the clamps go down.
FAQ
Which Dakota engines does this kit fit?The 4.7L and 5.9L V8 Dakotas from 2000 through 2003. Smaller-engine Dakotas of the same years take a different system.
Why is there no gasket in the box?The inlet is a clamp-on connection rather than a bolted flange, so no gasket or seal is required or supplied.
Will it fit a 3.9L Dakota?No. The 3.9L uses a different part number in the same BRExhaust family.
How many clamps come with it?Four 2.5 in U-bolt clamps, which is enough for every joint in the kit.
Are hangers included?No. Hangers and a mounting bracket are not part of this kit, so the truck's existing hardware is reused.
Does it need cutting or welding?No. It installs as a bolt-on multi-piece system routed around the axle, crossbars and brackets.
What size is the muffler?21.5 in long by 7 in high by 9 in wide.
Does it change emissions compliance?No. All emissions hardware is left intact.
What warranty applies?A two-year unlimited-mileage construction warranty.
Installation Instructions
- Cool the exhaust and raise the truck on rated stands or a lift with clearance behind the rear axle.
- Wire-brush the outlet pipe stub the new inlet clamps onto, because a clamp-on joint seals on the pipe surface rather than on a gasket.
- Free the old system at the clamp-on joint and at each hanger, and lower it clear.
- Lay the new pieces out in order and dry-fit the inlet joint to confirm full engagement depth before lifting the rest into place.
- Assemble the system loosely with all four U-bolt clamps in position and every hanger seated.
- Route the pipes around the axle, crossmembers and brackets, then adjust the slip joints for clearance to the floor, fuel lines and spare tyre.
- Rotate the tailpipe into the OEM exit position and confirm it is not touching the bumper or the bed.
- Tighten the four clamps front to rear so each joint stays fully engaged.
- Start the engine and check for leaks at each slip joint, then re-check the clamps after the first heat cycle. MagnaFlow recommends professional installation for this product family.
