Heavy 2.75 Inch Pipe and a Twenty-One Inch Muffler for a Big-Block-Era Suburban

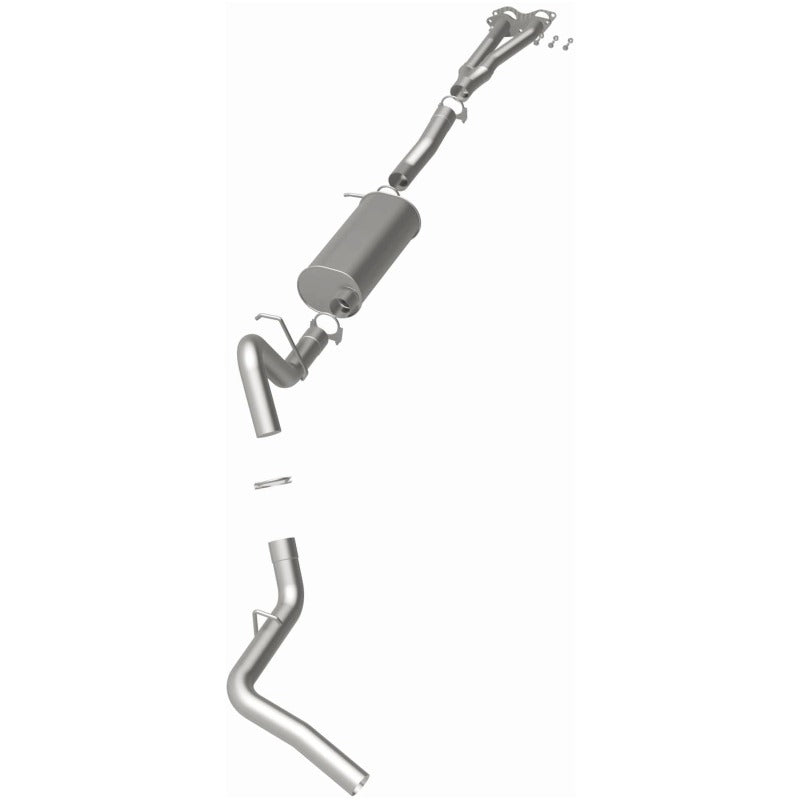

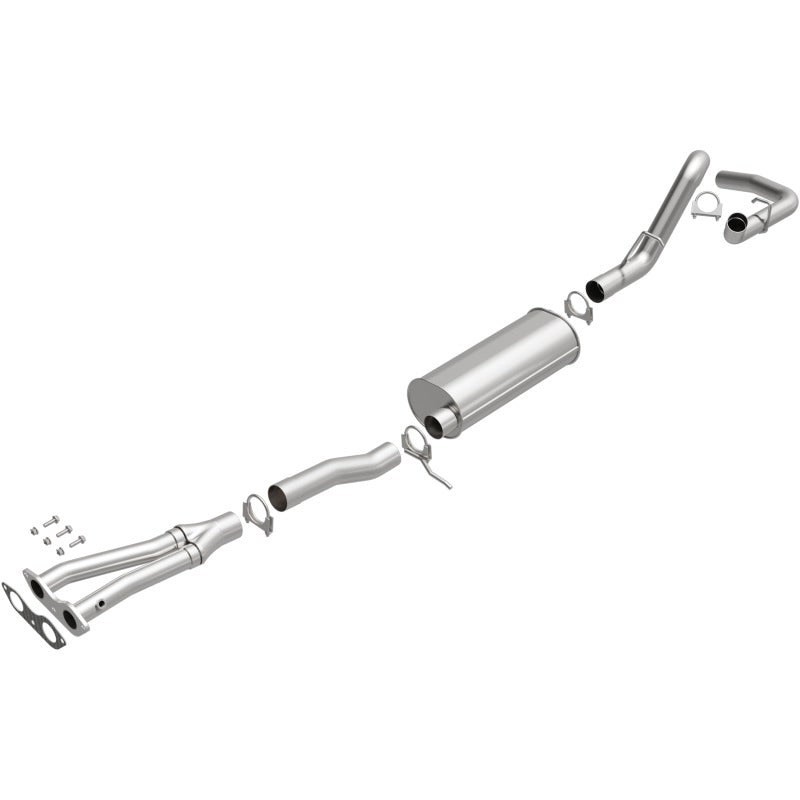

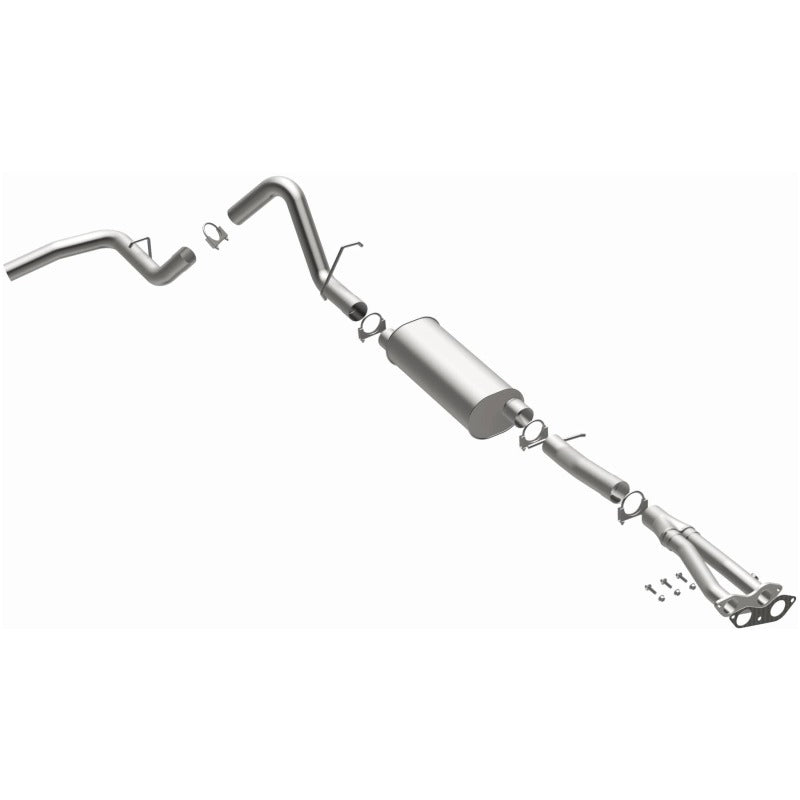

BRExhaust 106-0473 is the direct-fit replacement exhaust for the 1996 to 1999 GMC Suburban in C1500, C2500, K1500 and K2500 form with the 5.7L V8. It uses 2.75 in mandrel-bent aluminized pipe feeding a single 21.25 in standard-replacement muffler, and it picks up from behind or near the last catalytic converter.
Key Features
- Single large 21.25 in standard-replacement muffler in an aluminized body.
- Heavy 2.75 in main piping, the largest bore in this BRExhaust family.
- Mandrel-bent aluminized steel from behind or near the last catalytic converter rearward.
- Spring bolt kit is included for the flange connection.
- A 3.125 in U-bolt clamp hanger is supplied as part of the kit.
- Exits in the OEM location so the tailpipe still sits where the factory system did.
- BRExhaust 106-0473 does not include the chassis hangers, so the truck's existing hangers are reused.
Fitment
| Vehicle | Engine and years |
|---|---|
| GMC C1500 Suburban | 1996-1999, 5.7L V8 |
| GMC C2500 Suburban | 1996-1999, 5.7L V8 |
| GMC K1500 Suburban | 1996-1999, 5.7L V8 |
| GMC K2500 Suburban | 1996-1999, 5.7L V8 |
The manufacturer's compatible-vehicle table returned only the GMC Suburban entries above. The Chevrolet section of that table did not render, so the equivalent Chevrolet Suburban applications are expected but are not confirmed and have not been tagged.
No 2000 model year and no pickup application appeared on the manufacturer page, so neither is claimed here.
Specifications
| Detail | Value |
|---|---|
| Brand | BRExhaust |
| MPN | 106-0473 |
| Series | Direct-Fit Exhaust |
| Muffler body | 7 in H x 21.25 in L x 9 in W |
| Muffler quantity | 1 |
| Main piping diameter | 2.75 in |
| Pipe and muffler material | Aluminized steel |
| Overall finish | Satin |
| Exit style | OEM location |
| Inlet type | Bolt-on |
| Clamping | U-bolt |
| Hangers included | No |
| Spring bolt kit | Yes |
| Catalytic converter included | No |
| Warranty | 2-year unlimited-mileage construction warranty |
What's Included
- One BRExhaust 106-0473 direct-fit exhaust kit with pipes and the 21.25 in muffler
- One 3.125 in U-bolt clamp hanger
- One 2-inlet gasket
- Three 3.125 in U-bolt clamps
- Three bolts and three nuts
About BRExhaust
BRExhaust is the OE-replacement exhaust brand within MagnaFlow's stable, and the large GM utility applications are among the heavier-gauge kits in the range simply because of pipe diameter. A 2.75 in bore and a 21 in muffler is a lot of hardware to hang under a truck, which is why 106-0473 supplies the flange spring bolts and a clamp hanger.
Related Parts
FAQ
Why does the listing name Suburbans rather than pickups?The pipe routing and length are shaped to the Suburban body, and BRExhaust lists the C1500, C2500, K1500 and K2500 Suburban across both Chevrolet and GMC badges for this kit.
Does it fit a Chevrolet Suburban?The Chevrolet half of the manufacturer's compatibility table did not render, so those applications are expected but unconfirmed. They are not claimed on this listing.
Does it cover the 2000 model year?No 2000 entry appeared on the manufacturer page, so the confirmed range ends at 1999.
Will it fit a C/K pickup?No pickup application appeared in the manufacturer data. Only Suburban entries were returned.
How large is the piping?2.75 in, which is the biggest bore in this BRExhaust kit family.
Are hangers supplied?The chassis hangers are not included, but a 3.125 in U-bolt clamp hanger is in the box.
Is a gasket supplied?Yes, a 2-inlet gasket along with the spring bolt kit.
Where does the tailpipe exit?In the OEM location, so the finished appearance matches the factory system.
What warranty applies?A two-year unlimited-mileage construction warranty.
Installation Instructions
- Cool the system fully and raise the truck on a lift; a 2.75 in system for a Suburban is long and heavy enough that a second pair of hands helps.
- Check every existing hanger and isolator before starting, because this kit does not include chassis hangers.
- Penetrating oil on the flange fasteners, then disconnect the front joint and free the old system from its hangers working rearward.
- Set the new pipes and the 21.25 in muffler out on the floor in order and compare bend angles to the old system.
- Fit the front pipe with the 2-inlet gasket and the spring bolts, leaving the spring bolts at the tension the kit provides.
- Slide the muffler and tailpipe together with the 3.125 in U-bolt clamps left loose, and fit the clamp hanger where the old system was supported.
- Adjust for clearance to the frame, the transfer case on K models and the fuel tank, checking at full axle droop.
- Tighten the clamps from front to rear once the tailpipe sits in the OEM exit position.
- Start the engine, check for leaks, and re-check every clamp after the system has been through a full heat cycle. MagnaFlow recommends professional installation for this product family.
