A Single Seventeen-Inch Muffler for the V6 S-Series Pickup

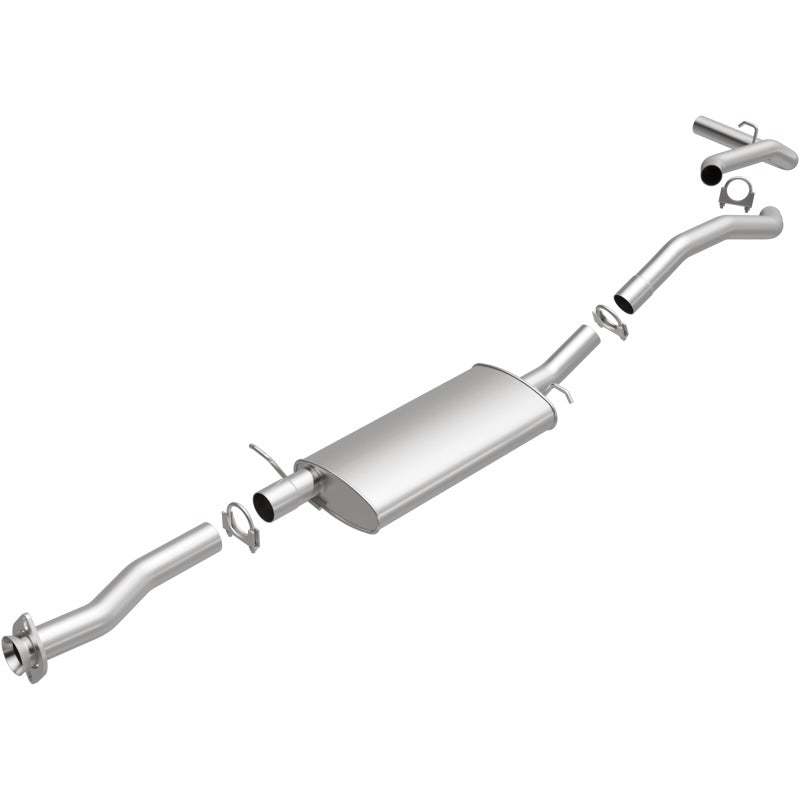

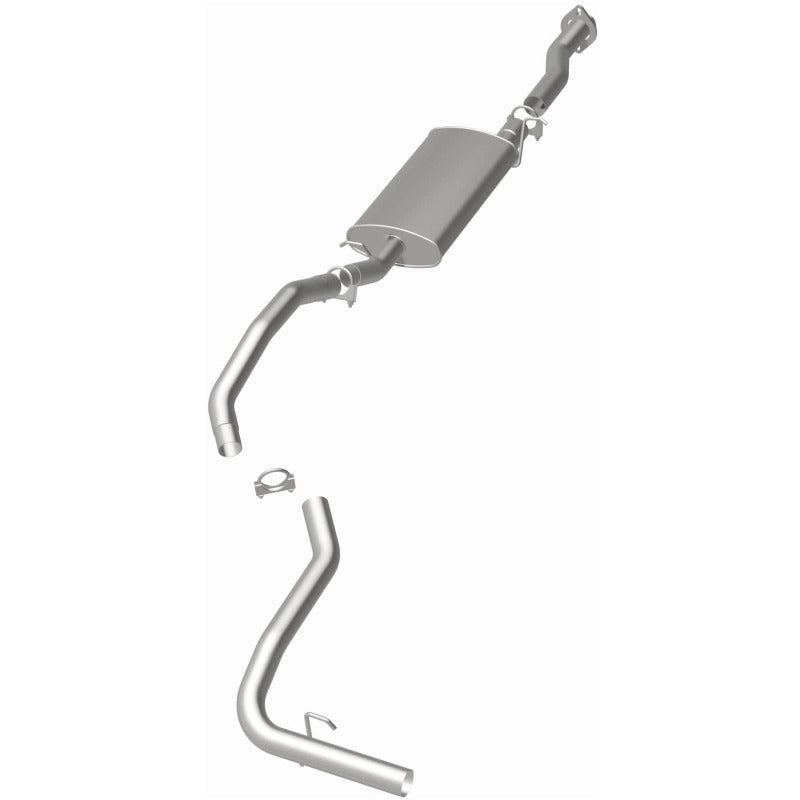

BRExhaust 106-0490 is the direct-fit exhaust for the 1992 and 1993 Chevrolet S10 and its GMC Sonoma twin, in either 2.8L or 4.3L V6 form. The system runs 2.25 in mandrel-bent aluminized pipe into a single 17.25 in standard-replacement muffler and exits in the factory position.
Key Features
- Single 17.25 in standard-replacement muffler in an aluminized body.
- 2.25 in main piping sized to the V6 S-series application.
- Mandrel-bent aluminized steel for both corrosion resistance and consistent flow area.
- Spring bolt kit included for the flange joint.
- Leaves all factory emissions equipment intact.
- Covers both the Chevrolet S10 and the GMC Sonoma, and both V6 engines, under one part number.
- BRExhaust 106-0490 exits in the OEM location so the tailpipe looks factory.
Fitment
| Vehicle | Engine and years |
|---|---|
| Chevrolet S10 | 1992-1993, 2.8L V6 |
| Chevrolet S10 | 1992-1993, 4.3L V6 |
| GMC Sonoma | 1992-1993, 2.8L V6 |
| GMC Sonoma | 1992-1993, 4.3L V6 |
The manufacturer's table ends at 1993, so a 1994 application is not supported.
Cab, bed and wheelbase restrictions are not published for this part number, so compare the tailpipe route to the truck before fitting.
Specifications
| Detail | Value |
|---|---|
| Brand | BRExhaust |
| MPN | 106-0490 |
| Series | Direct-Fit Exhaust |
| Muffler body | 4.5 in H x 17.25 in L x 9.75 in W |
| Muffler quantity | 1 |
| Main piping diameter | 2.25 in |
| Pipe and muffler material | Aluminized steel |
| Overall finish | Satin |
| Exit style | OEM location |
| Inlet type | Bolt-on |
| Clamping | U-bolt |
| Hangers included | No |
| Spring bolt kit | Yes |
| Catalytic converter included | No |
| Warranty | 2-year unlimited-mileage construction warranty |
What's Included
- One BRExhaust 106-0490 direct-fit exhaust kit with pipes and the 17.25 in muffler
- One 2.5 in U-bolt clamp
- Two 2.25 in U-bolt clamps
- Two washers, two nuts and two bolts
About BRExhaust
BRExhaust's direct-fit range exists to serve vehicles whose original exhaust is no longer available, and the S-series pickups are a case in point. 106-0490 follows the original routing over the rear axle and uses the factory hanger positions, so the only variable at fitting is how much of the old hardware survived.
FAQ
Which compact pickups does this kit cover?The Chevrolet S10 and its GMC Sonoma twin from the early 1990s, which share the same chassis and exhaust routing.
Does it fit a 1994 truck?No. The manufacturer's compatibility table ends at 1993.
Does one kit cover both engines?Yes, the 2.8L and 4.3L V6 applications share this part number.
Is the Sonoma the same as the S10 here?For this exhaust, yes. Both badges are covered by the same kit.
Are hangers included?No, hangers are not supplied, so the truck's existing hangers and isolators are reused.
What clamps are in the box?One 2.5 in U-bolt clamp and two 2.25 in U-bolt clamps, plus washers, nuts and bolts.
Does it affect the catalytic converter?No. The converter stays in place and the kit begins behind it.
What size is the muffler?4.5 in high, 17.25 in long and 9.75 in wide.
What warranty applies?A two-year unlimited-mileage construction warranty.
Installation Instructions
- Cool the exhaust, raise the truck on rated stands and support the rear axle so it cannot drop while you work over it.
- Assess the existing hangers and isolators, since none are supplied with this kit.
- Soak the flange hardware, disconnect the front joint and free the old system from each hanger.
- Lay the new pipes and muffler out in order and check that the over-axle bend matches the truck's ride height and wheelbase.
- Fit the front pipe using the supplied spring bolts so the joint stays under spring tension as the system heats.
- Add the muffler and tailpipe with the 2.25 in and 2.5 in U-bolt clamps left loose, seating the system on the factory hangers.
- Check clearance over the axle at full bump and full droop, and to the fuel tank and brake lines.
- Tighten the clamps front to rear with the tailpipe set in the OEM position.
- Run the engine and check every joint for leaks, then re-check the clamps after a heat cycle. MagnaFlow recommends professional installation for this product family.
