SKU: 16-97-2260

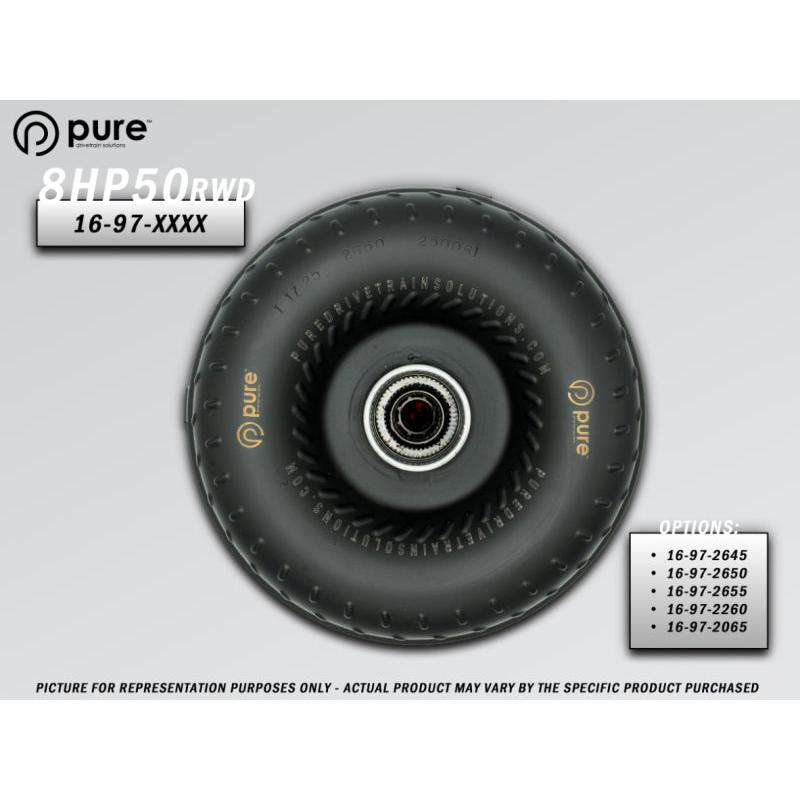

PDS 8HP50 High Performance Billet Race Torque Converter - 22/60 Stator - RWD Fits 2015-2021 BMW M3 M4 M2
This PDS billet race torque converter upgrades ZF 8HP50 RWD transmissions in 2015-2021 BMW M3 F80 M4 F82/F83 and M2 F87 models. The 22/60 stator provides stall speeds from 2800-3600 RPM for faster launches in drag racing and track use. Billet construction withstands over 1000 HP while furnace-brazed fins improve heat management and durability.
Key Features
- Billet Front Cover: Fully machined aluminum cover resists flex under high torque loads for consistent performance.
- 22/60 Stator Design: Optimized pitch and blade count deliver precise stall control and quicker acceleration off the line.
- Furnace Brazed Impeller/Turbine: Welded fins prevent ballooning at high RPM enhancing longevity in race conditions.
- Billet Lockup Piston: Multi-disc clutch setup ensures firm lockup reducing slip and heat buildup.
- Hand-Balanced Assembly: Precision balancing eliminates vibration for smooth operation at all speeds.
Product Notes
- Special order item typical lead time 2-4 weeks from manufacturer.
- No core charge required core return not applicable.
- Handle with care during storage to avoid fin damage.
Installation Notes
- Professional installation recommended.
- Transmission must be removed requires compatible ZF 8HP50 pump and flexplate.
- Torque converter bolts to 45 ft-lbs use red Loctite on stator splines.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2019 | BMW | M3 | Base F80 Sedan RWD Auto |
| 2015-2020 | BMW | M4 | Base F82 Coupe F83 Convertible RWD Auto |
| 2017-2021 | BMW | M2 | Base Competition F87 Coupe RWD Auto |
| 2016-2019 | BMW | 340i | xDrive F30 Sedan RWD Auto |
| 2017-2020 | BMW | 440i | xDrive F32 Coupe F33 Convertible F36 Gran Coupe RWD Auto |
Why Choose PDS?
- Decades of torque converter expertise in drag racing applications.
- Billet materials proven in 1000+ HP builds.
- Custom stator geometries tailored for ZF 8HP50 racing.
Frequently Asked Questions
-
Q: Does this fit 2018 BMW M4 Competition with 8HP50?
A: Yes fits all RWD 2015-2020 M4 models equipped with factory ZF 8HP50 automatic transmission no modifications needed. -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover billet steel piston furnace brazed steel impeller and turbine shells. -
Q: What warranty coverage applies?
A: 1-year unlimited mileage warranty against defects when installed by certified shop excludes abuse or improper fluid.
Shipping & Handling
- Method: UPS Freight Ground
- Availability: Special order ships within 2-4 business days of order confirmation
- Packaging: Double-walled cardboard box 24 x 24 x 12 inches
- Weight: 68 lbs
