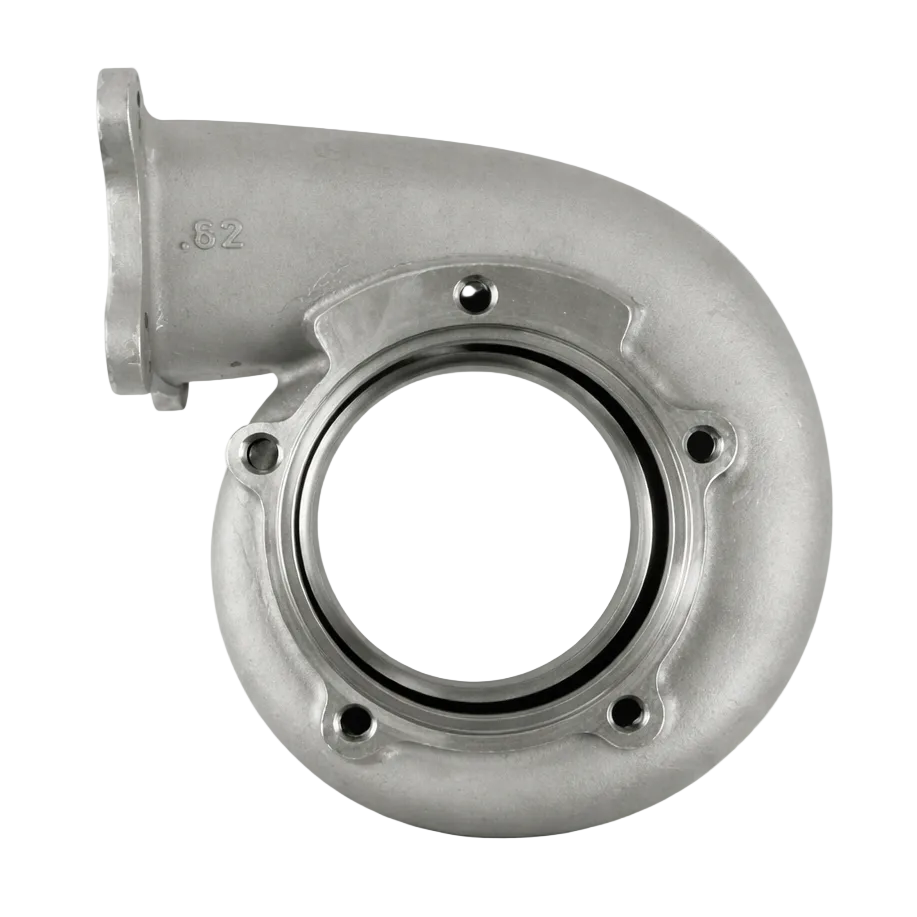

Turbosmart 62mm T4 turbine housing full view
Click to zoom in

Turbosmart B Frame T4 0.82AR 62mm Turbine Housing

Turbosmart
TURTS-19TH62B-T4082
Turbine Housings
7 Units In Stock - Ships Next Business Day
$ 514.99 $ 463.49
$ 463.49

SKU: TS-19TH62B-T4082

Turbosmart B-Frame T4 0.82 A/R 62mm Turbine Housing - Universal Performance Fit

The Turbosmart TS-19TH62B-T4082 B-Frame T4 0.82 A/R 62mm Turbine Housing delivers high exhaust flow and reduced backpressure for turbo builds needing strong top-end power. This precision-cast housing with T4 divided inlet fits Turbosmart 62mm CHRA and works in high-boost setups on Subaru WRX/STI Mitsubishi Evo Nissan RB/SR Toyota 2JZ Honda K-Series or custom applications. It supports street drag drift and track use with excellent efficiency at high RPM.

Key Features

  • B-Frame Design: Advanced structure improves flow characteristics and withstands high heat for long-term durability
  • T4 Divided Inlet: Dual-scroll flange enhances spool-up and throttle response on twin-scroll exhaust manifolds
  • 0.82 A/R Ratio: Balances quick response with high-RPM flow for larger displacement engines and elevated boost levels
  • 62mm Turbine Wheel Match: Bolts directly to Turbosmart 62mm wheels for seamless integration and peak performance
  • High-Temp Casting: NiResist material handles extreme exhaust gas temperatures up to 1000C with precision machining

Product Notes

  • T4 divided 0.82 A/R configuration supports twin-scroll manifolds for reduced turbo lag and high-RPM power
  • Direct upgrade for Turbosmart 62mm turbochargers in high-boost or large-engine builds
  • Ships in secure packaging with approx 12-18 lbs weight handling as oversize item

Installation Notes

  • Professional installation recommended.
  • Bolt-on to Turbosmart 62mm CHRA torque bolts to manufacturer specs and verify wheel clearance
  • Balance complete turbo assembly post-install and inspect for exhaust leaks

This Part Fits

Year Make Model Submodel
2002-2021 Subaru Impreza WRX/STI
2003-2016 Mitsubishi Lancer Evolution VIII/IX/X
1989-2002 Nissan Skyline R32/R33/R34 RB25/RB26
1989-1998 Nissan 240SX S13/S14 SR20DET
1993-1998 Toyota Supra MK4 2JZ-GTE
2002-2020 Honda Civic/Integra K20/K24 Swap Builds
- Universal Turbosmart 62mm CHRA Direct Fit

Why Choose Turbosmart?

  • Australian-engineered for global motorsport with proven track record in endurance racing
  • High-temperature NiResist casting ensures reliability under 30+ psi boost and 1000C temps
  • Limited lifetime warranty covers defects for peace of mind in performance applications

Frequently Asked Questions

  • Q: Does this fit Turbosmart 62mm turbos?
    A: Yes TS-19TH62B-T4082 bolts directly to Turbosmart 62mm CHRA for B-Frame series.
  • Q: What material is used?
    A: High-temperature NiResist cast iron/alloy resists heat and corrosion in extreme turbo conditions.
  • Q: What warranty applies?
    A: Turbosmart limited lifetime warranty on housing for manufacturing defects excludes abuse.

Shipping & Handling

  • Method: UPS/FedEx Ground (Oversize)
  • Availability: In stock - ships same or next business day
  • Packaging: Secure protective foam and box
  • Weight: Approx. 12-18 lbs
