SKU: TS-0506-1002

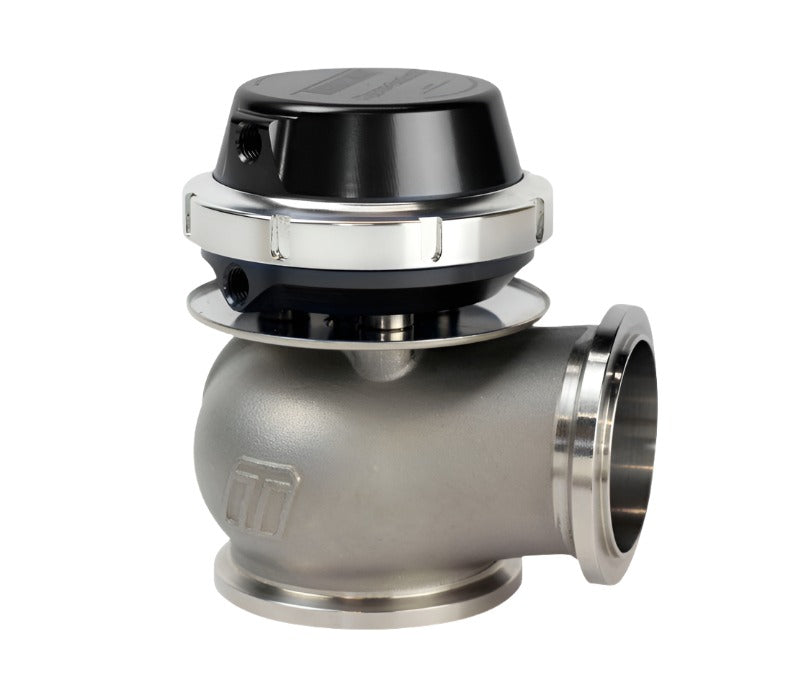

Turbosmart WG45 2011 Hyper-Gate 45 7psi Black External Wastegate
The Turbosmart WG45 2011 Hyper-Gate 45 7psi Black is a compact external wastegate with a 45mm valve for precise boost management in high-performance turbo setups. It fits universal turbo manifolds with V-band flanges on vehicles like Subaru WRX STI Mitsubishi Evo and Nissan Silvia. Delivers reliable 7psi boost from the factory spring with options for higher pressures using replaceable springs.
Key Features
- 45mm Valve Diameter: Handles high exhaust flow rates supporting turbochargers up to 800HP for consistent performance
- Dual Silicone Nomex Diaphragms: Provides extended diaphragm life with superior thermal resistance in extreme conditions
- 304 Stainless Steel Housing: 3mm thick construction resists corrosion and withstands high temperatures
- Black Anodized Finish: Enhances durability and heat dissipation while giving a sleek motorsport look
- 1/8in NPT Water Cooling Port: Allows liquid cooling for prolonged actuator life in demanding applications
Product Notes
- Factory spring rated at 7psi replaceable for custom boost levels up to 26psi
- Clockable actuator housing offers 12 positions for flexible routing
- Ships with V-band clamps gaskets and fittings for quick setup
Installation Notes
- Professional installation recommended.
- Requires 44.1-44.5mm OD V-band dump pipe and matching manifold flange
- Actuator spring preloaded use supplied compression tool for disassembly
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002-2021 | Subaru | Impreza | WRX STI |
| 1995-2002 | Nissan | 240SX | S14 |
| 1989-1998 | Nissan | Silvia | S13 S15 |
| 2003-2006 | Mitsubishi | Lancer | Evo VIII |
| 2007-2015 | Mitsubishi | Lancer | Evo IX X |
| Universal | - | Turbocharged Vehicles | External Wastegate Manifold |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Proven reliability in motorsport with rigorous factory testing
- Innovative design sets industry benchmarks for performance parts
Frequently Asked Questions
-
Q: Does this wastegate fit my turbo setup?
A: Yes it fits any manifold with 2.5in V-band inlet outlet flanges common on Subaru STI Evo Nissan and custom turbo cars -
Q: What materials are used in construction?
A: Features 304 stainless steel housing Nitronic 60 valve seat and high-temp silicone Nomex diaphragms for durability -
Q: What warranty is provided?
A: Turbosmart offers a limited lifetime warranty on springs and 2 years on the product with registration
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard box 10in x 10in x 8in
- Weight: 4.85 lbs
