UMI Performance 1964-1977 GM A-Body Complete Rear Control Arm Bolt Kit, Grade 8 Zinc

Complete Rear Control Arm Bolt Kit for the 1964-1977 GM A-Body

This kit carries enough Grade 8 hardware to bolt in both the upper and the lower rear control arms on a 1964-1977 GM A-Body in one go. UMI publishes the contents directly: eight half inch Grade 8 bolts, eight half inch nylon lock nuts and washers, all zinc plated.

That is exactly double the single-position upgrade kit, which is what makes it the right choice for a full four-arm rear suspension rebuild on a Chevelle, GTO, Cutlass, Skylark, Monte Carlo, El Camino or any of the other A-Body cars UMI lists.

Key Features

• Eight half inch Grade 8 bolts, manufacturer stated
• Eight half inch nylon lock nuts, manufacturer stated
• Washers included
• Zinc plated finish for corrosion resistance
• Complete coverage for both the upper and lower rear control arm positions
• Direct bolt-on with no modifications required

Fitment

The UMI page slug still reads 1964-1972 and retailer titles repeat that narrower range. UMI's live application table publishes 1964-1977 GM A-Body, and that table governs the fitment shown here.

Unlike the single-position upgrade kit, UMI does not publish an F-Body application for this part number, so no Camaro or Firebird years are tagged.

UMI publishes year, make and model for this part number without a submodel, trim, engine or drivetrain breakdown, so the fitment tags on this listing stop at model level rather than inventing a trim. The one exception is the Impala SS, which UMI names directly.

Specifications

What's Included

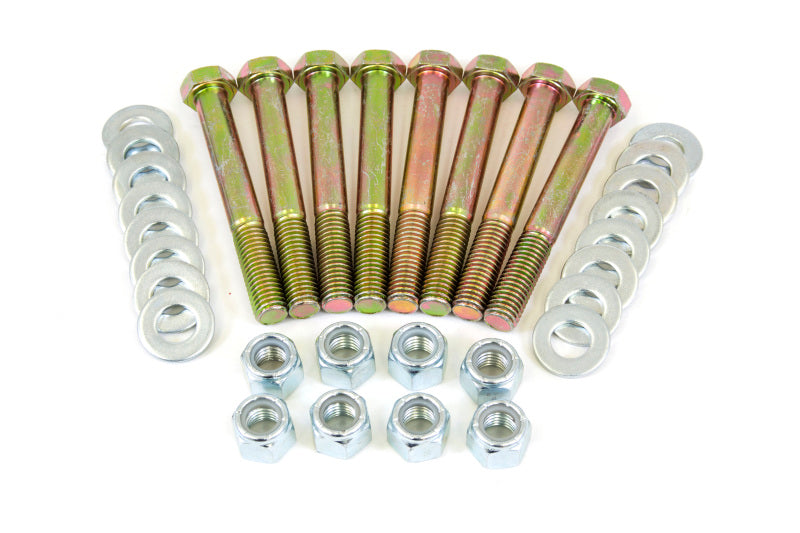

• Eight half inch Grade 8 zinc plated bolts
• Eight half inch nylon lock nuts
• Washers

The bolt and nut counts above are stated by UMI and independently repeated by two retailers. The washer quantity is published only as washers, so no washer count is claimed.

About UMI Performance

UMI Performance builds chassis and suspension parts at 509 Hemlock Street in Philipsburg, Pennsylvania, using precision bent DOM tubing, laser cut steel, TIG and robotic welding and durable powder coat finishes. UMI's fastener kits are sized to its own arm sets, which is why the complete rear kit carries exactly twice the hardware of the single-position kit.

Related Parts

• UMI Performance adjustable upper and lower rear control arm kit for the 1968-1972 GM A-Body, which ships without mounting hardware
• UMI Performance tubular rear lower control arms for the 1964-1972 GM A-Body

FAQ

Eight half inch Grade 8 bolts, eight half inch nylon lock nuts and washers, all zinc plated, as published by UMI.

Yes. That is what separates it from the single-position upgrade kit, which carries half the hardware.

The upgrade kit covers one rear position. This kit doubles the count so both the uppers and the lowers can be installed on new fasteners.

No. It is rear control arm hardware. UMI lists a separate front upper and lower A-arm hardware kit.

1964-1977 GM A-Body per UMI's current application table, even though the page slug and some retailer titles still say 1964-1972.

None. It is a direct bolt-on replacement for the factory fasteners.

UMI publishes no torque figure for the kit. Use the value in the instructions for the arms being installed or the factory service manual figure. UMI's A-Body rear arm sheets call for 72 ft-lb.

UMI designs these fasteners for UMI and factory arms and states that they work with many other brands. Confirm the bolt diameter your arms use, because UMI does not guarantee compatibility with components it did not make.

No. No UMI A-Body rear kit is documented as including one. The shock stud reuse note that appears on UMI's 1965-1970 full-size Chevrolet arms is a different application.

UMI publishes a two year warranty from the original date of purchase against defects in materials and workmanship, to the original purchaser only, and it is not transferable. The same policy excludes misuse, use beyond the design limits of the part, improper installation, acts of God, handling and shipping damage, any product that has been altered, adjusted, tampered with or defaced, components not made by UMI, incidental costs such as towing and labour, and normal wear items including bearings and bushings. UMI also states it cannot guarantee compatibility with other manufacturers' components. The sheet packed in the box still carries an older disclaimer that predates the current two year term, and the live policy page is the document that governs. Neither is a Black Ops Auto Works warranty.

Installation Instructions

1. Lay out the eight bolts, eight nylon lock nuts and washers and confirm the arms being fitted use half inch mounting hardware.
2. Support the car on jack stands under the frame as directed by the instruction sheet for the arms being installed.
3. Replace one arm at a time so the rear axle stays located.
4. Fit each new bolt with a flat washer and start the nylon lock nut by hand, leaving the joint loose.
5. Once all four arms are in place, relocate the stands to the rear axle so the suspension carries the weight of the car.
6. Tighten every fastener to the torque published in the control arm instructions or the factory service manual, since UMI publishes no torque figure for the kit itself.
7. Recheck all eight fasteners after the first few drives.

UMI's A-Body rear lower arm sheet is published at https://static.speedwaymotors.com/pdf/1854015B.pdf and the matching rear upper arm sheet at https://static.speedwaymotors.com/pdf/1854017B.pdf.
