SKU: 28203

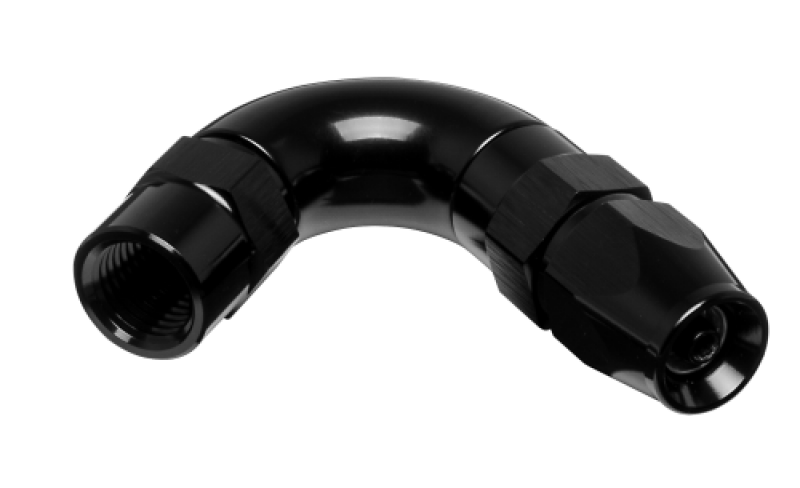

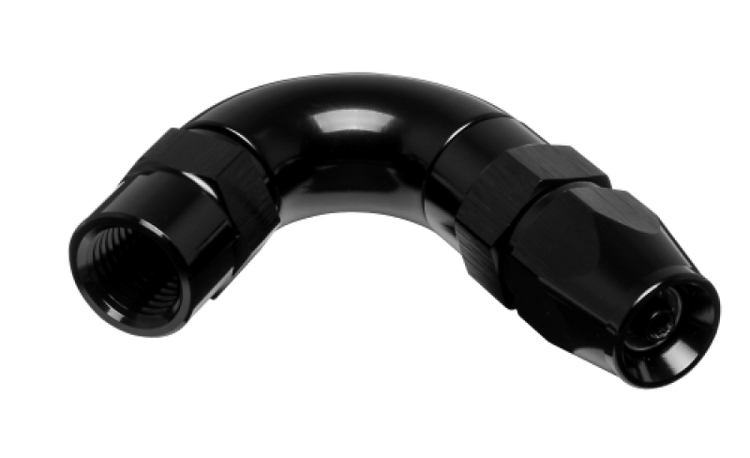

Vibrant -3AN 120 Degree High Flow Hose End Fitting for PTFE Lined Flex Hose - Aluminum Universal Fit
This Vibrant hose end fitting delivers high flow rates through a 120 degree angle design perfect for tight routing in custom fuel oil and brake lines. Crafted for PTFE lined flex hose it ensures leak proof connections under high pressure and temperature. Ideal for performance builds where space constraints demand precise bends without flow restriction.
Key Features
- High Flow Design: Enlarged internal bore reduces turbulence and pressure drop for unrestricted fluid movement in demanding systems
- 120 Degree Swivel Angle: Allows flexible hose positioning in confined engine bays while maintaining secure alignment
- CNC Machined Aluminum: Lightweight 6061-T6 construction resists corrosion and withstands extreme heat up to 500°F
- PTFE Hose Compatibility: Precision machined seat forms airtight seal with lined flex hose preventing leaks in fuel oil or coolant applications
- Black Anodized Finish: Durable coating protects against wear and enhances longevity in harsh underhood environments
Product Notes
- Pair with Vibrant PTFE lined hose for optimal performance in high pressure systems
- Inspect o-rings regularly to maintain seal integrity during operation
- Packaged securely to prevent thread damage during transit
Installation Notes
- Professional installation recommended.
- Torque to 12-15 ft-lbs using AN-3 o-ring and thread sealant on male threads
- Compatible with standard -3AN female ports and hose crimp tools
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Fuel/Oil Line Custom Builds |
Why Choose Vibrant?
- Trusted leader in performance fabrication components for motorsports
- Engineered for reliability in racing and street applications
- Precision manufacturing ensures consistent fit and flow every time
Frequently Asked Questions
-
Q: What size hose does this fitting work with?
A: Designed for -3AN PTFE lined flex hose with 3/16 inch inner diameter ensuring a secure crimp and seal -
Q: What material and finish are used?
A: CNC machined from 6061-T6 aluminum with black anodized finish for corrosion resistance and heat tolerance -
Q: Is there a warranty on this fitting?
A: Backed by Vibrant Performance limited lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Individual protective box 2 x 2 x 1 inches
- Weight: 0.05 lbs
