SKU: 28303

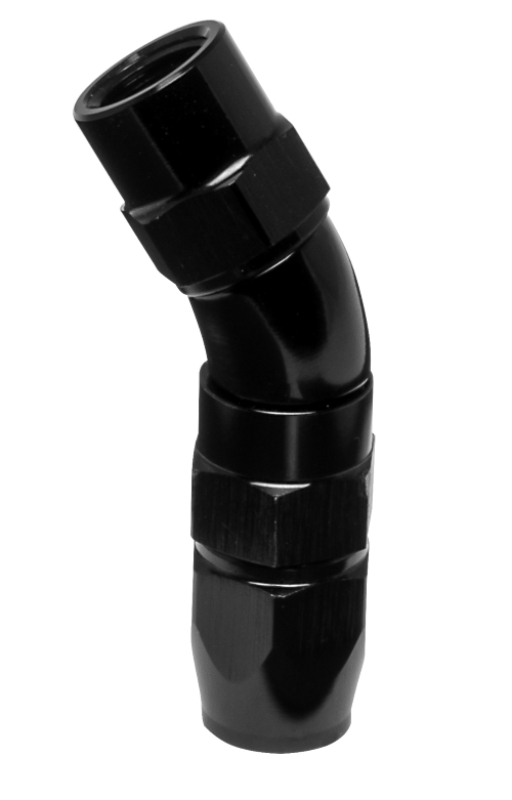

Vibrant -3AN 30 Degree High Flow Hose End Fitting for PTFE Lined Hose - Aluminum
This Vibrant Performance hose end fitting connects -3AN PTFE lined hoses in custom fuel oil and coolant systems for racing and street vehicles. The 30 degree angle supports tight routing around engine bays and frames while maintaining maximum flow rates. Aluminum construction ensures lightweight durability and resistance to fuels oils and coolants under high pressure.
Key Features
- -3AN Size: Matches 3/16 inch ID PTFE hoses for compact high pressure plumbing in fuel injection and oil cooler setups
- 30 Degree Angle: Allows precise hose bends in confined spaces without kinking or flow loss
- High Flow Bore: Oversized internal port minimizes restrictions and turbulence for faster fluid transfer
- 6061 Aluminum Build: Provides strength to weight ratio with corrosion resistance for long lasting performance
- PTFE Hose Specific Design: Reusable seal technology grips lined hoses securely without swaging tools
Product Notes
- Cut hose ends squarely with a clean hose cutter before assembly
- Pair with Vibrant ferrules model 28801 for optimal crimp hold
- Individually packaged to prevent thread damage during transit
Installation Notes
- Professional installation recommended.
- Use calibrated crimping tool to secure ferrule per Vibrant instructions
- Threads accept standard -3AN male or female adapters and flare nuts
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Fuel Oil Coolant Systems |
Why Choose Vibrant?
- Proven in NHRA drag racing and circle track applications
- Machined to AN standards for leak free high pressure operation
- Backed by decades of plumbing expertise in motorsports
Frequently Asked Questions
-
Q: What hose inner diameter does this -3AN fitting work with
A: Fits 3/16 inch ID PTFE lined hoses used in -3AN plumbing systems -
Q: What finish and material details apply
A: Silver anodized 6061 T6 aluminum resists corrosion and wear from fuels and oils -
Q: Is assembly reusable after disassembly
A: Yes reusable multiple times with inspection of o ring and ferrule condition
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 3 x 2 x 1 inch box
- Weight: 0.05 lbs
