SKU: 28803

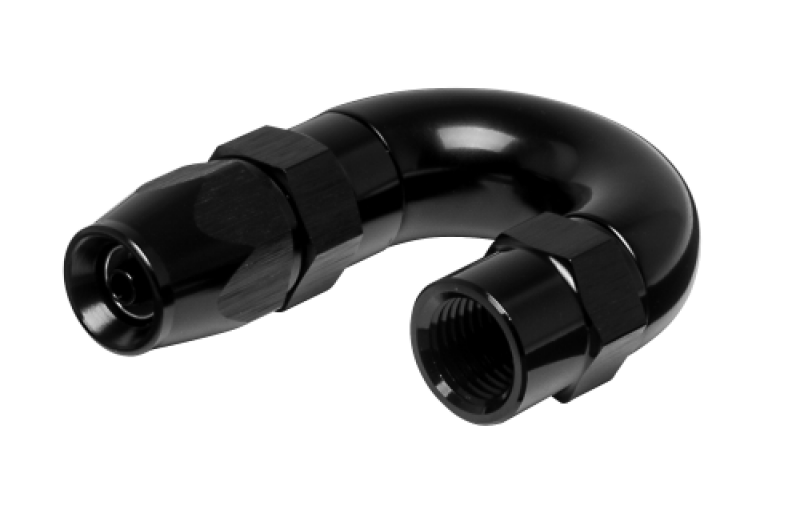

Vibrant -3AN 180 Degree High Flow Hose End Fitting for PTFE Lined Hose - Aluminum
This Vibrant Performance hose end fitting connects -3AN PTFE lined hoses in high performance automotive applications. The 180 degree bend enables tight radius routing for fuel oil or nitrous lines in engine bays transmissions or turbo setups. High flow internal bore maintains pressure and volume for reliable power delivery in racing or street builds.
Key Features
- High Flow Bore: Larger internal diameter reduces flow restriction compared to standard AN fittings supports higher volume transfer
- 6061-T6 Aluminum Construction: Lightweight durable material with black anodized finish resists corrosion withstands high heat and pressure
- 180 Degree Bend: Full U-turn design fits confined spaces allows clean hose routing around headers pumps or firewalls
- PTFE Hose Compatible: Beadlock style secures smooth PTFE inner liner prevents kinking or blowouts under boost
- Reusable Design: Swageless assembly disassembles easily for maintenance or hose replacement saves time and cost
Product Notes
- Use only with -3AN PTFE lined braided hose for proper seal and performance
- Inspect fittings regularly for wear in high vibration environments
- Small lightweight part ships securely in protective packaging
Installation Notes
- Professional installation recommended.
- Slide hose through fitting insert ferrule and tighten clamp to 60 in-lbs torque using AN hose assembly tool
- Compatible with all standard -3AN male female swivel fittings and adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Universal | Custom Fabrication | All |
Why Choose Vibrant?
- Proven in NHRA IHRA drag racing and circle track applications
- CNC machined in USA for exact tolerances and consistent quality
- Engineered for extreme pressure up to 1000 PSI burst rating
Frequently Asked Questions
-
Q: What size hose does this fitting work with
A: Designed for -3AN ID PTFE lined hose with braided outer cover matches Vibrant Performance hose perfectly -
Q: What is the material and finish
A: CNC machined 6061-T6 billet aluminum with durable black anodized coating for heat and chemical resistance -
Q: Does it require special tools for install
A: Uses standard AN hose clamp tool torque wrench assembly lube recommended fully reusable no crimping needed
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact poly bag in 3 x 2 x 1 inch box
- Weight: 0.05 lbs
