SKU: 28403

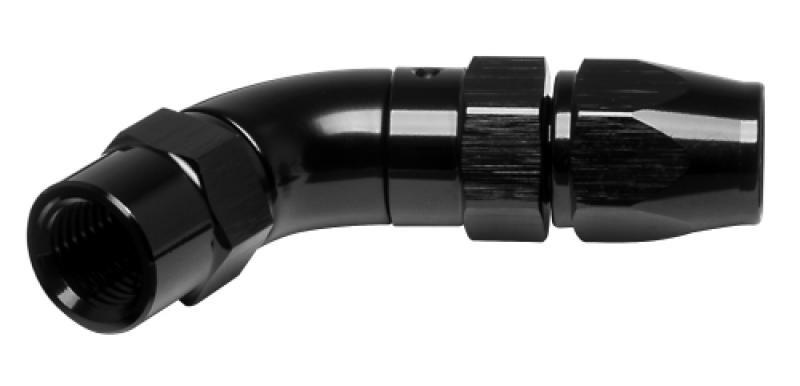

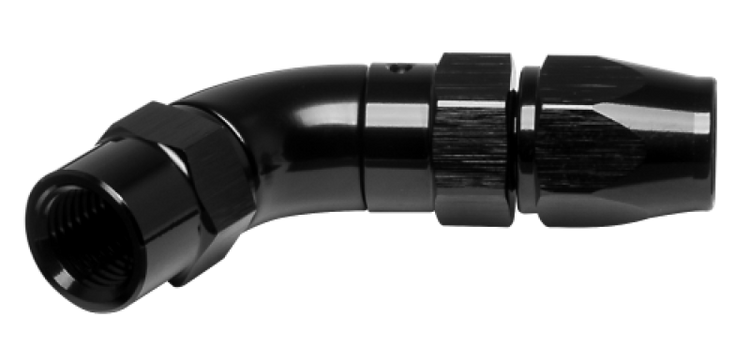

Vibrant -3AN 45 Degree High Flow Hose End Fitting for PTFE Lined Flex Hose - Aluminum - Universal
This Vibrant hose end fitting connects -3AN PTFE lined flex hose in custom fuel oil and coolant line setups on performance vehicles. The 45 degree angle simplifies routing around engine components while maintaining high flow rates to support boost levels and horsepower gains. Aluminum construction ensures durability under high pressure and temperature swings common in racing applications.
Key Features
- AN-3 Size: Matches standard -3AN PTFE hose with 0.125 inch inner diameter core for leak free secure connection
- 45 Degree Elbow: Allows precise hose routing in tight engine bays reducing kinks and flow restrictions
- High Flow Design: Oversized bore passages increase volume throughput by up to 30 percent over standard AN fittings
- Swageless Installation: Push on beadlock style requires no crimping tools reusable design saves time on builds
- 6061-T6 Aluminum: Lightweight at 0.06 pounds resists corrosion handles 1000 psi burst pressure
Product Notes
- Use only with PTFE lined hose compatible with Vibrant 28000 series hoses
- Inspect fittings regularly for wear in high vibration environments
- Ships in protective bubble wrap inside 4x3x1 inch box
Installation Notes
- Professional installation recommended.
- Cut hose square push over barb until seated then torque swivel nut to 10-12 ft-lbs
- Compatible with all standard -3AN male ports and adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Vehicles | Custom AN Systems |
| 1955-2024 | Chevrolet | Camaro Corvette | All Performance |
| 1955-2024 | Ford | Mustang F-150 | All Performance |
| 1989-2024 | Honda | Civic Accord | All Performance |
Why Choose Vibrant?
- Engineered for motorsports with proven reliability in NHRA drag racing
- Precision CNC machining ensures consistent tolerances across batches
- Direct fit with Vibrant PTFE hose lineup for complete system builds
Frequently Asked Questions
-
Q: Will this fit standard -3AN braided hose?
A: Designed specifically for PTFE lined flex hose inner core 0.125 inch not rubber core braided hose -
Q: What finish is on the aluminum?
A: Clear anodized for corrosion resistance and clean appearance under hood -
Q: Is there a warranty on this fitting?
A: Vibrant offers limited lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: 4 x 3 x 1 inch box
- Weight: 0.06 lbs
