SKU: TS-0567-1242 | UPC: 9329677032741

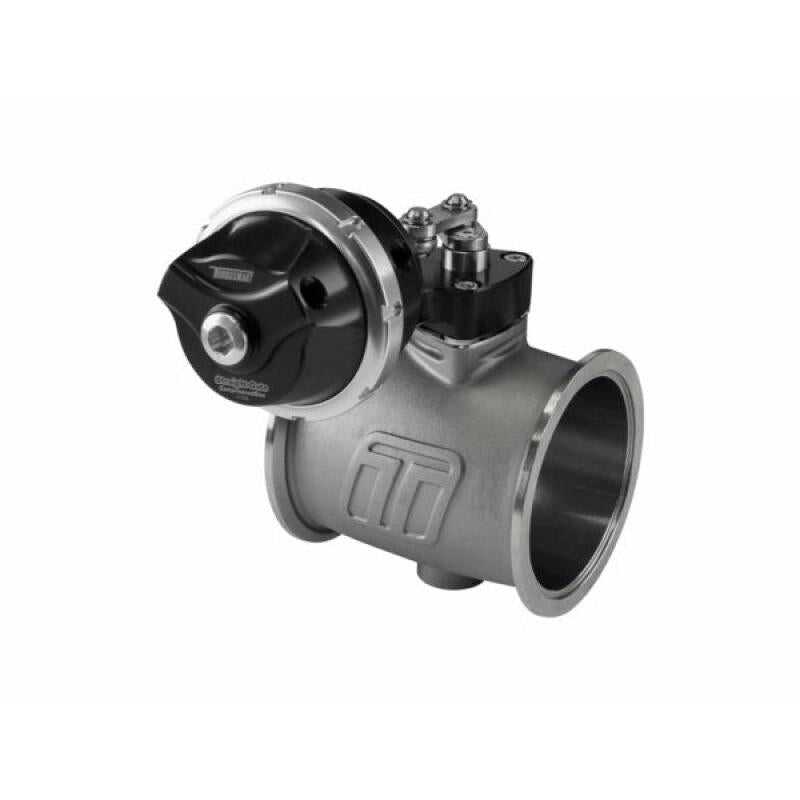

Turbosmart PSG76CG 7PSI Compressed Gas Pneumatic StraightGate76 - Black - Universal Fit
The Turbosmart PSG76CG 7PSI Compressed Gas Pneumatic StraightGate76 - Black is a high-flow external wastegate designed for turbocharged performance vehicles. This 76mm unit provides universal fitment with matching V-band turbo housings and exhaust manifolds. It delivers rapid valve response and precise boost regulation via compressed gas actuation ideal for race and street applications pushing high horsepower.
Key Features
- StraightGate Design: Direct exhaust path eliminates restrictions boosts turbine speed and power output across the RPM range
- Compressed Gas Actuator: 7PSI green spring base with regulator adjustment supports boost from low to over 50PSI in high-horsepower builds
- 347 Stainless Steel Housing: Investment cast body resists heat corrosion and fatigue for long-term reliability in extreme conditions
- V-Band Connections: Includes inlet outlet clamps and gaskets for leak-free secure installation on 76mm flanges
- Nomex Reinforced Diaphragm: Silicone diaphragm handles high pressures without failure ensuring consistent operation
Product Notes
- Requires separate compressed gas source like CO2 tank and adjustable regulator
- Optional water cooling ports available for sustained high-boost track use
- Special order item verify stock before purchase
Installation Notes
- Professional installation recommended.
- Mount in vertical position with actuator facing up for optimal gas flow
- Compatible with standard V-band turbo flanges includes all mounting hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| All Years | Universal | Turbocharged Vehicles | 76mm V-Band Turbo Flange |
Why Choose Turbosmart?
- Motorsport-proven in World Time Attack and drag racing series
- Precision-machined components from billet and cast housings
- Extensive dyno and track validation for real-world performance
Frequently Asked Questions
-
Q: Will this fit my aftermarket turbo setup?
A: Yes fits any turbocharger and manifold with 76mm V-band inlet and outlet flanges common on large Garrett Precision BorgWarner and similar turbos -
Q: What material and finish does it have?
A: 347 stainless steel investment cast housing with black anodized aluminum actuator cap for heat resistance and corrosion protection -
Q: What warranty coverage applies?
A: Turbosmart offers 12 months warranty from purchase date against manufacturing defects when installed and used correctly
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Box dimensions 11.1 x 10.4 x 8.5 inches
- Weight: 5.17 lbs
